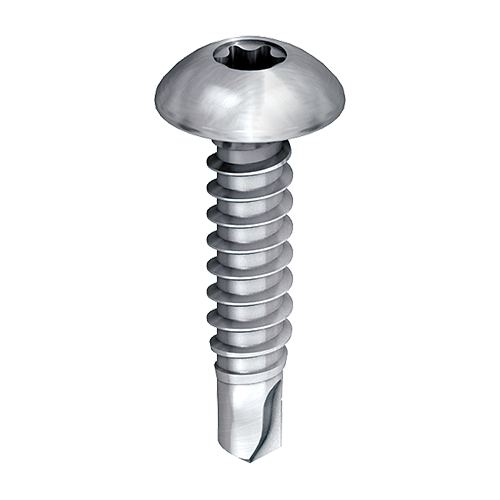

EJOT® SAPHIR in acciaio inox JT4-FR-4-5,5

JT4-FR-4-5,5_500x500

Caratteristiche

  • Applicazioni

    • Fissaggio di lamiere grecate ondulate in alluminio su sottostrutture in alluminio spessore ≤ 3 mm
    • Fissaggio di pannelli da facciata su sottostrutture in alluminio

  • Caratteristiche

    • Acciaio inox A2
    • Rondella di tenuta in acciaio inox
    • Rondella di tenuta premontata con guarnizione in EPDM

  • Dati tecnici

    • Diametro: 5,5 mm
    • Azionamento: TORX T25
    • Capacità di foratura tI + tII: 1,0 + 3,0 mm
    • Numero giri: max. 1500 1/min
Descrizione articolo Codice articolo Diametro filetto mm Materiale Unità d´imballo
JT4-FR-4-5,5x19 7381138300 5.5 Acciao Inox A2 1000

Dati tecnici

Diametro filetto
5.5
Materiale
Acciao Inox A2
Descrizione articolo
JT4-FR-4-5,5x19
Unità d´imballo
1000
