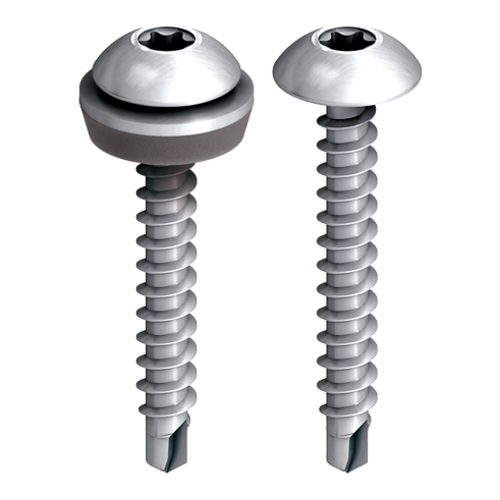

EJOT® SAPHIR in acciaio inox JT4-FR-2-4,9

JT4-FR-2-4,9_nw_2016

Caratteristiche

  • Applicazioni

    • Fissaggio di lamiere grecate ondulate in alluminio su sottostrutture in legno
    • Fissaggio di pannelli da facciata su sottostrutture in legno

  • Caratteristiche

    • Acciaio inox A2
    • Rondella di tenuta in acciaio inox
    • Rondella di tenuta premontata con guarnizione in EPDM
    • Filettatura secondo DIN 7998

  • Dati tecnici

    • Diametro: 4,9 mm
    • Azionamento: TORX T25
    • Capacità di foratura tI + tII: 0,5 + 2,0 mm
    • Numero giri: max. 1500 1/min
Descrizione articolo Codice articolo Diametro filetto mm Materiale Unità d´imballo
JT4-FR-2-4,9x35-E11 3503568420 4.9 Acciao Inox A2 500

Dati tecnici

Diametro filetto
4.9
Materiale
Acciao Inox A2
Descrizione articolo
JT4-FR-2-4,9x35-E11
Unità d´imballo
500
