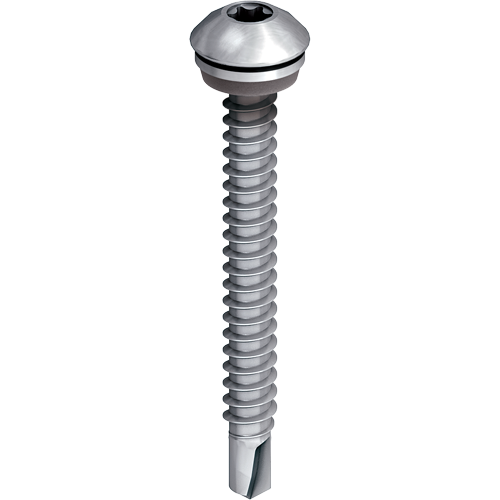

SUPER-SAPHIR JT3-FR-3-5,5

JT3-FR-3-5,5
JT3-FR-3-5_5_nw_2016

Caratteristiche

  • Applicazioni

    • Fissaggio di lamiere grecate ondulate in acciaio su sottostrutture in acciaio spessore 1 - 2,5 mm
    • Fissaggio di lamiere grecate ondulate in alluminio su sottostrutture in alluminio o acciaio spessore 1  - 2,5 mm

  • Caratteristiche

    • Acciaio inox A2 con punta forante in acciaio al carbonio
    • Rondella di tenuta in acciaio inox
    • Rondella di tenuta premontata con guarnizione in EPDM

  • Dati tecnici

    • Diametro: 5.5 mm
    • Azionamento: TX25
    • Capacità di foratura tI + tII: 1,0 + 2,5 mm
    • Numero di giri: max. 1500 1/min.
Descrizione articolo Codice articolo Diametro filetto mm Materiale Unità d´imballo
JT3-FR-3-5,5x50-E11 3592869335 5.5 Acciao Inox A2 500

Dati tecnici

Diametro filetto
5.5
Materiale
Acciao Inox A2
Descrizione articolo
JT3-FR-3-5,5x50-E11
Unità d´imballo
500
